OK-PRO9 OKAF 4G WIFI GPS Mobile Solar CCTV Security Tower Temporary Monitoring for Parking Lot

Name: OKPRO9 OKAF 4G WIFI GPS Mobile Solar CCTV Security Tower Temporary Monitoring for Parking Lot
Brand: OKAF
Price: 1 USD

Best OK-PRO9 OKAF 4G WIFI GPS Mobile Solar CCTV Security Tower Temporary Monitoring for Parking Lot wholesale

Brand Name : OKAF

Model Number : OK-PRO9

Certification : CE/ROHS

Place of Origin : China

MOQ : 1 unit

Price : Negotiated

Payment Terms : T/T, Western Union, MoneyGram, D/A, D/P, L/C

Supply Ability : 50 units / month

Delivery Time : 20~30 working days

Packaging Details : Wood box

Product name : OK-PRO9 OKAF 4G WIFI GPS Mobile Solar CCTV Security Tower Temporary Monitoring for Parking Lot

Solar tower dimension : 110*110*220cm

Solar tower weight : 600KG

Solar power : 4*350W total 1400W

Battery capacity : 8*150Ah DC12V Gel battery

Camera resolution : 1920*1080

Camera zoom : 20x optical zoom

Camera type : IP PTZ camera

Contact Now

Product Description

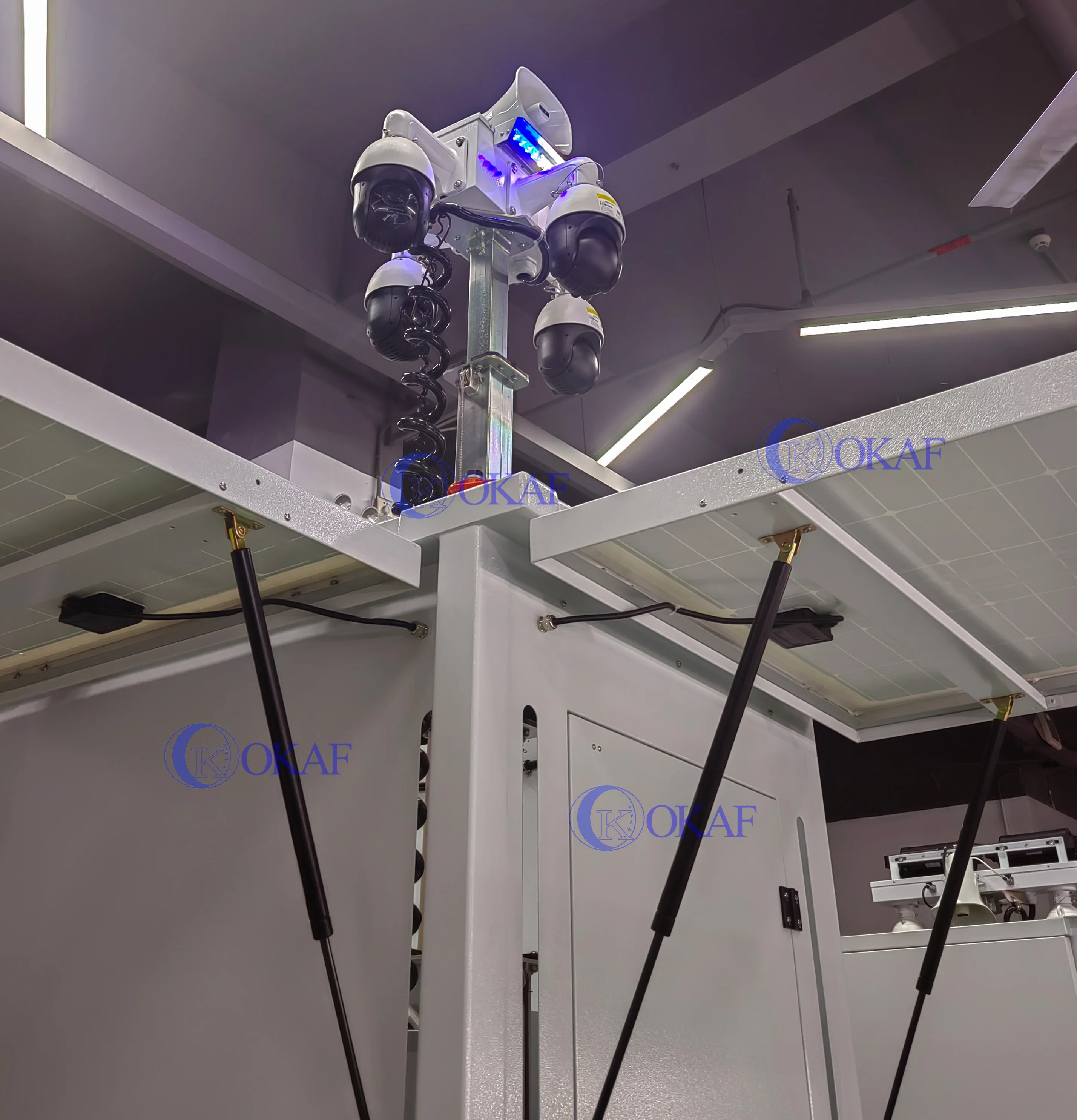

OKAF Mobile solar surveillance tower composed of camera system, ,lifting system ,transmission system, led strobe light, loud speakers and power management system. All in one integrated design, Easy to operate. 4 Pcs PTZ cameras 360°rotation achieve all-round monitoring without blind spots. Electric telescopic mast lifting up to 6.5 meter. With 4G transmission. PTZ cameras rotation can be controlled online. The system support regional intrusion alarm. When people come near the tower, it will give an alarm. Solar and battery power supply, realized 24/7 uninterrupted monitoring. AI functions such as face recognition, safety helmet detection, smoking detection are able to customize.

ADVANTAGES

Advantages of OKAF Mobile solar cctv tower

●Support area intrusion alarm.
●Support motion detection.
●Support two way audio.
●Provide mobile APP for online real time video viewing and Camera control.

● Front-end data mobile acquisition device.

● High resolution cameras resolution 1920*1080, 20x optical zoom

● Support intrusion detection, cross-border detection, mobile detection etc.

● Support intercom. Remote talk.

● High prevention effect due to red-blue LED light.

● Back-end storage and control system.

● Integrated video analytics software and alarm platform

● State-of-the-art video compression for real-time image transmission.

● Battery power supply, solve the issue no electricity at site.

● Battery easy to take out, easy charging.

● Solar panel 4*350W, total 1400W.

● with MPPT solar controller, 95% efficiency.

● Easy to transport with forklift.

● Electric lifting telescopic mast, extend height up to 6m.

OK-PRO9 OKAF 4G WIFI GPS Mobile Solar CCTV Security Tower Temporary Monitoring for Parking Lot

APPLICATIONS

OKAF mobile solar security tower aims to solve challenges facing security personnel, such as:

♦ Construction site security
♦ Oil and Gas site security
♦ Road construction monitoring
♦ Traffic monitoring
♦ Law enforcement mobile surveillance
♦ Ports and harbors monitoring
♦ Airports security
♦ Incident areas
♦ Vacant property management
♦ Border security
♦ Business and parking lot security
♦ Public events safety

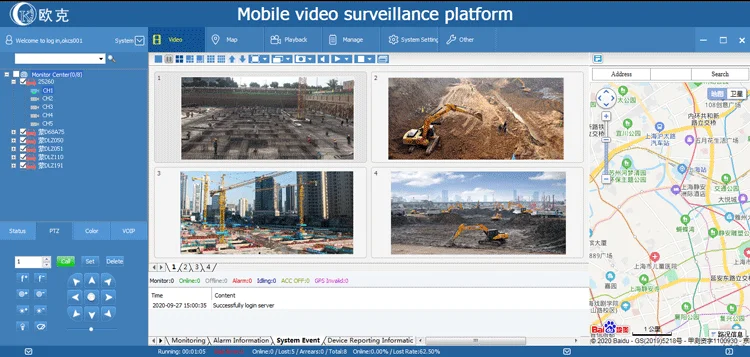

View real time video on PC or cellphone

TECHNICAL DATA

CCTV Surveillance camera	Camera type	Network IP PTZ camera
	Pixel	2.0MP /4MP
	Resolution	1920*1080 @ 30fp
	Focal length	f=5.4~108mm, 20x optical zoom
	Pan range	360° continuously rotation
	Tilt range	-15°~ +90° rotation
	Network port	RJ45 10Base-T/100Base-TX PoE(IEEE802.3af)
	Support	Area intrusion alarm
Video Transmission & storage	Video input	4 channel network 1080P, aviation interface
	Video output	1 channel composite video output+1 channel VGA output, 1.0Vp-p, 75Ω
	Preview function	Single-channel, 4-screen splicing preview, support manual / event triggered full-screen display function
	Video resolution	Support 1080P,720P,D1,HD1, CIF optional, Max support 4ch 1080P
	Audio input	4channel, Aviation interface
	Audio output	1channel
	Alarm Output	2-way switch output, linked audible and visual alarm, oil and power off, etc.
	communication interface	2 RS232, expandable face recognition, fuel sensor, LED advertising screen, etc.
		2 way 485 interface, can extend PTZ
		2-way CAN bus interface
	Wireless transmission	Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE
	Position	Support built-in GPS / BD module, can report to the platform. Anti theft.
	Hard disk	Support large capacity 2.5-inch hard disk (maximum 4TB)
Power supply	Solar panel	Monocrystalline silicon
	Solar Power	4*350W total 1400W
	Solar controller	MPPT solar controller, 95% efficiency
	Battery type	Lithium battery
	Battery capacity	8* DC12V 150Ah, total 14400Wh
	Battery charge time	9 hours
	Battery charger	AC110~ AC240V
Telescopic mast	Mast Type	Electric elescopic mast
	Mast height	Full height 6.5m. retracted height 1.74m.
	Top Payload weight	50KG
	Material	Steel
	Wind speed	8 level. 66km/h
	External cable cable	1CAT5 + 21.0 power wires
Tower body	Material	Galvanized sheet, outdoor anti-corrosive power coating.
	Forklift feet	Easy to transport with forklift
	Dimension	110110220cm
	Weight	500KG
	Inverter	Support AC110V ~AC220V output
	Outrigger	4* Manual lifting outriggers
	IP rating	IP65 waterproof for outdoor use
	Low temperature storage	-55℃
	Low temperature work	-20'℃
	High temperature storage	70 ℃
	High temperature work	55℃
	Loud speaker	Loud sound, adjustable volume,waterproof
	Packed in container	20 Units in 20ft Container. 40 units in 40ft container

https://www.youtube.com/watch?v=nH0qT3MqswM

OK-PRO9 OKAF 4G WIFI GPS Mobile Solar CCTV Security Tower Temporary Monitoring for Parking Lot Images
